Teck Cables

1/3 Teck Cable - Master

Category:
Residential, Teck, Wire
SKU:
1/3 Teck Cable
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

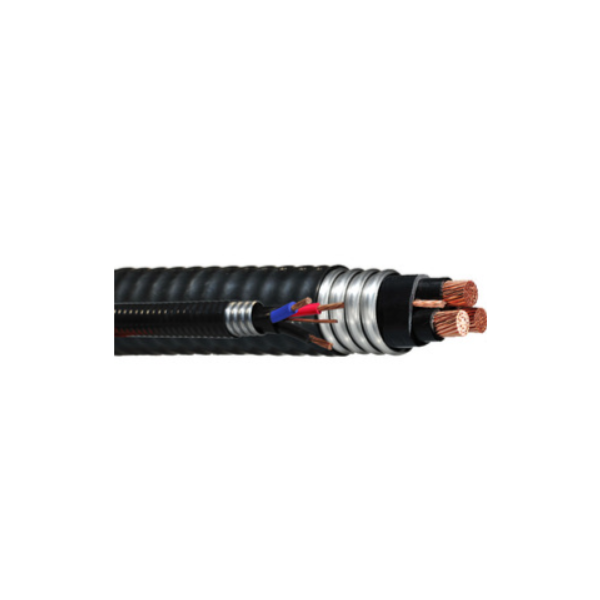

1/3 Teck Cable - Master



  • Armoured: Yes
  • Voltage: 1kV
  • AWG Size: 1
  • No of Conductors: 3
  • Insulation Material: Cross-linked Polyethylene (XLPE)
  • CSA: Yes
  • Approximate Diameter Armour: 1.44
  • Approximate Diameter Inner Jacket (in.): 1.21
  • Approximate Diameter Outer Jacket (in.): 1.54
  • Armour Material: Aluminum Interlocked Armour (AIA)
  • Color: Black
  • Conductor Material: Stranded bare copper
  • Copper Content KG/KM: 1288
  • Copper Content LB/MFT: 866
  • Flame Test Rating: Yes
  • Approximate Diameter Insul: (in.)0.49
  • Jacket Material: Polyvinyl Chloride (PVC)
  • Name: Teck Cable 1 AWG 3C 1kV AIA
  •
